System Descriptions

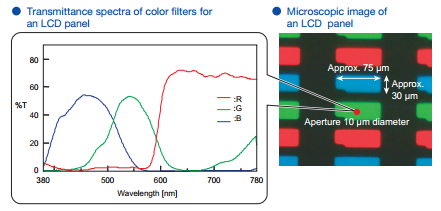

A broad range of applications including the collection of transmittance/reflectance spectra of a sample, measurement of the band gap and film thickness of semiconductors, evaluation of the optical characteristics of functional crystals and the color analysis of microscopic samples can be easily implemented using the MSV-5000 UV-Visible-NIR micro-spectrometer series.

The MSV-5000 UV-Visible-NIR micro-spectrophotometer series includes 3 different microscope systems:

MSV-5100 Spectrophotometer

The MSV-5100 is a dedicated UV-Visible-NIR microspectrometer with a wavelength range of (200-900 nm).

MSV-5200 Spectrophotometer

The MSV-5200 UV-Visible-NIR microspectrophotometer includes a Peltier-cooled PbS detector and has a wavelength range of (200-2700 nm).

MSV-5300 Spectrophotometer

The MSV-5300 UV-Visible microspectrometer incorporates an InGaAs detector to obtain optimized NIR measurements and has a wavelength range of (200-1700 nm).

The wide-band cassegrain objectives provide continuous transmittance/reflectance measurements for the entire spectral range desired, without the use of expensive, coated refractive objectives. An optional automated XYZ stage also offers mapping/imaging capability for larger samples.

A PC-controlled objective carousel can be used to select any of the available 10X, 16X or 32X objectives in combination with the standard optical zoom feature to provide enhanced video imaging of the sample utilizing a high-resolution CMOS camera. Options include binocular viewing, polarized observation and selected refractive objective lenses.

All models incorporate a user-selectable slitwidth for variable spectral resolution as well as selectable circular apertures and an adjustable rectangular aperture for sample area discrimination.

System Features

Wide spectral measurement range

The UV-visible microspectrophotometer system utilizes wide-band cassegrain objectives to provide transmittance/reflectance measurements continuously from 200 to 2700 nm (MSV-5200).

Polarization measurement

An automated Glan-Taylor polarizer system (standard) provides polarization measurements in combination with the optional automated polarization analyzer.

Auto XYZ stage

The optional automated stage enhances the operation performance of the system especially for mapping and multi-point measurements.

JASCO Spectra Manager™ II

Spectra Manager™ II software, a cross-platform control and analysis package for all JASCO spectroscopic instruments, offers quick and easy data acquisition and analysis.
